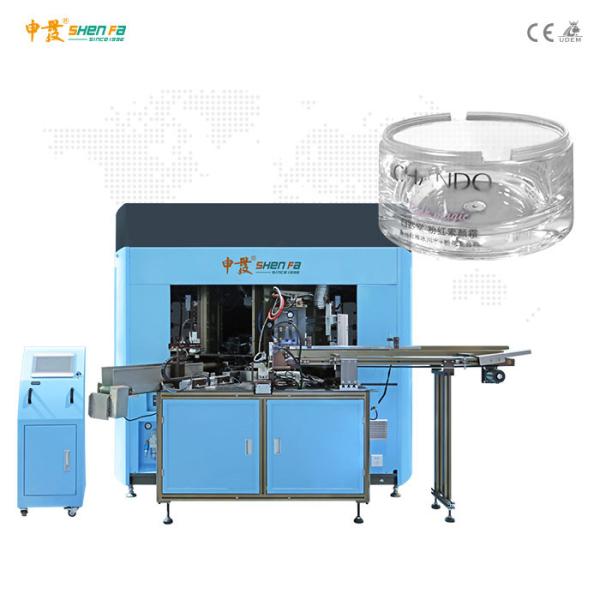

SF-SHR460 is designed with high precision(tolerance control within
0.2mm). It adopts independent servo variable frequency speed
regulating device. The printing speed can reach to 70pcs/min. Servo
gearless design, faster replacement of fixtures.
Application
◆ Adopt rotary module design, according to customer requirements
can be choose front and back positioning (rotary positioning),
varnishing , screen printing and hot stamping function.
◆ Adopt imported Germany splitter, ensure machine running stably,
high precision, high speed and high automatic level.
◆ Adopt full-servo motor design, facilitate operation and with
quickly adjustment, reduce the workload for operator.
◆ Equipped with unique frequency control device, the maximum
printing speed can reach to 80pcs/min, Compared with traditional mechanical lift 40%
◆ With high precision sensor, ensure second printing with high
positioning.
◆ With independent vacuum suction system, keep each fixture in
vacuum.
◆ Touch screen adopts the latest wireless technology, it convenient
for operators remotely control the equipment, reduce labor
intensity and improve work efficiency.
◆ The fixture is full servo control, convenient to replace and no
need to change gears.It can save the time of changing the fixture
greatly, and only needs the traditional 1/5 time to complete the
replacement.
◆ 100% of the fixture is controlled by independent servo to each
mandrel, which can ensure the accuracy of printing and the effect
of lacquer flowing, especially the color matching of the folding
position is perfect. It is also because of the independent control
of the fixture, which pioneered the technical application that
traditional equipment in the industry can not achieve. That is, the
technology breakthrough of positioning silk printing can be
achieved by fixing the lid immediately after varnish.

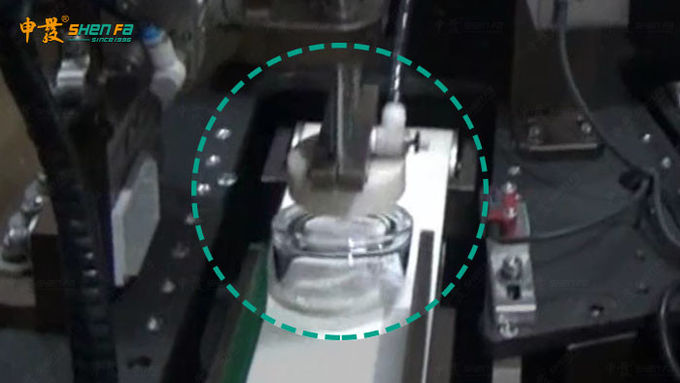

Automatic loading unit
Dust remove device

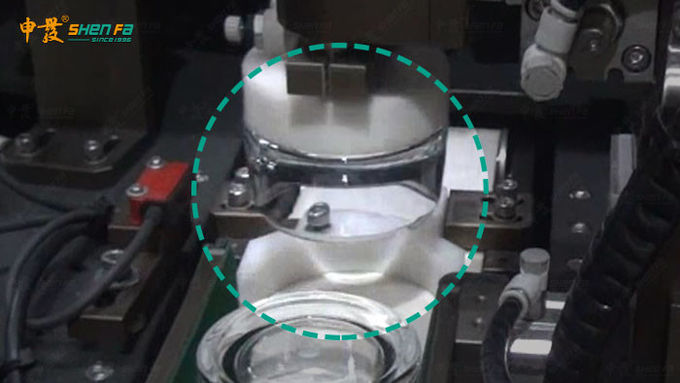

Support the jars into fixture before screen printing
Screen printing unit

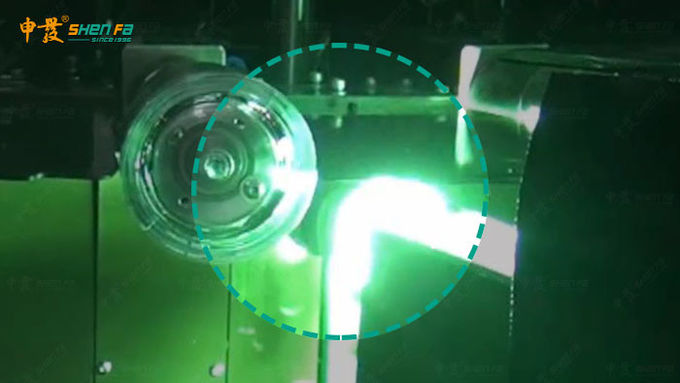

UV drying unit
Foil hot-stamping unit
Automatic unloading device
Printed sample
