Description:
The equipment is designed with high precision(tolerance control is
less than 0.2mm)automatic silk screen overprinting and hot
stamping,It adopts independent servo variable frequency speed
regulating device.The printing speed can reach up to 80 printings
per minute.Servo gearless design,faster replacement of
fictures,simpler,less vulnerable parts.
Technical Parameters:
| Model | Name | Product size | Speed(Pieces/minute) | Machine size(LxWxH) | Net Weight | Air Pressure(bar) | Power |
| SF-SHR720 | Automatic Servo varnish&screen printing &hot-stamping all
in one machine for tube | Φ(13-60)XL(25-240)mm | 80 | 300x300X215CM | 4500kg | 0.6-0.8mpa | AC380V 50/60HZ 45KW |
Features:
1.This series screen printing machine can print tubes and jars from
one color to six color, equipped automatic loading and unloading
systems, mechanical devices combined with PLC control.
2.Adopted main components from Rexroth, Schneider, SMC, Mitsubishi
etc; Mechanical parts made by CNC dirtctly from CAD design.
3.Adopted touch screen interface. Quick setup & quick toolings
change.
4.Adopted with No-object No-printing system, auto counter, safety
guard, out of working alarm device and auto separating device for
faulty printing.
5.Auto optical registration system, pre-printing & after printing
coating systems. Can be equipped by order.
Printing samples and machine details:
Varnishing System:
Cursor positioning system:

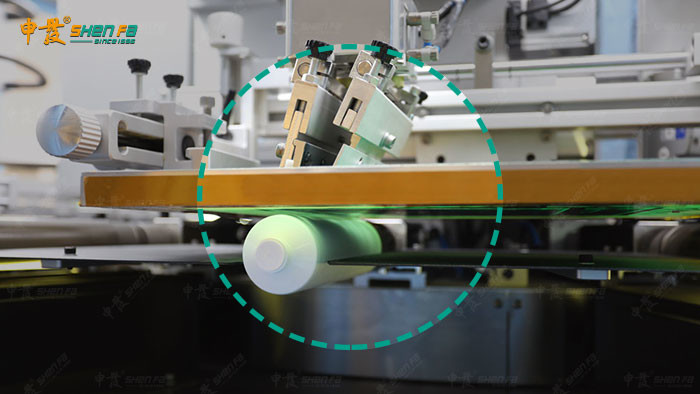

Screen printing device:
Flame treatment system:

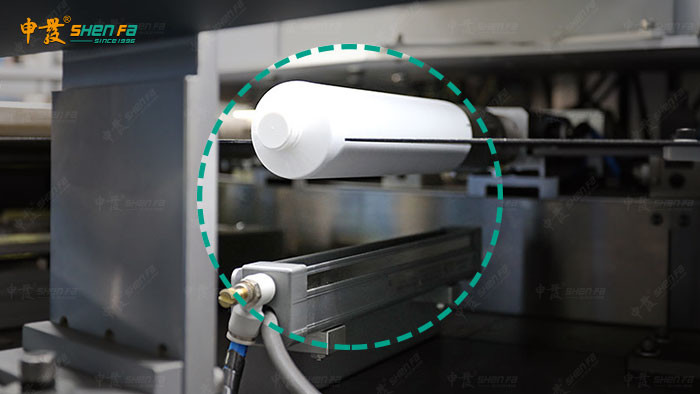

Anti-static system:
Automatic loading machine:
Loading system:

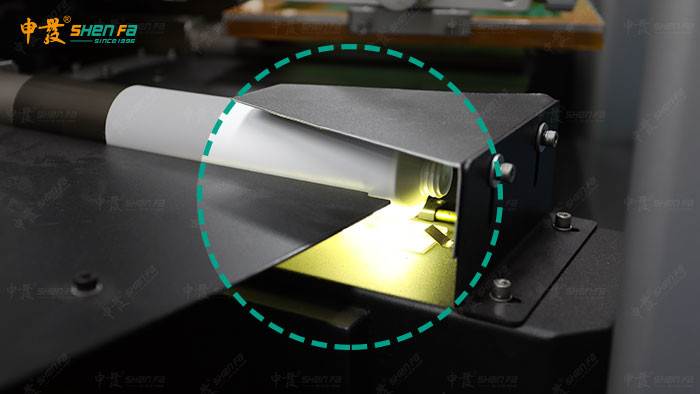

Uv drying or LED drying
Front and back positioning system:
Auto Unloading System:
Bluetooth technology:

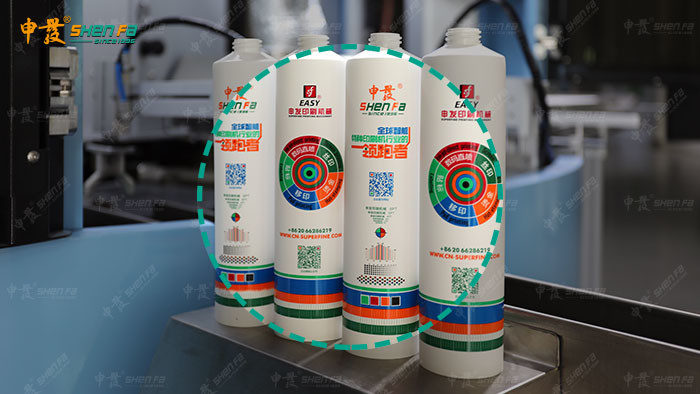

Samples:
